How to Choose the Best AR-15 Upper
Most “best upper” lists rank brands. What decides how an upper shoots and lasts is the parts list, and the barrel matters most. Here’s what to look for, and what Faxon does on every upper.
| What to check | Why it matters | Faxon uppers |
|---|
| Barrel steel and finish | Sets accuracy, life, and corrosion resistance | 4150 CMV (Duty, ION) or 416-R stainless (Match), salt-bath QPQ nitride inside and out; chrome lined on the Combat-barrel M4 |
| Rifling and inspection | A consistent bore is an accurate bore | Button rifled (5R on Match), borescoped three times, bore and groove air gauged, 100% wet MPI |
| Headspace | Safety and reliability | Every barrel headspace gauged with GO/NO-GO gauges; extensions torqued to 150 ft-lb |
| Receiver | Forged 7075-T6 is the proven standard | Faxon Enhanced Forged: trued, honed bore, tighter lugs, engraved T-marks; barrel threads gauged on every receiver |
| Gas system | Matched gas length means softer, more reliable cycling | Pistol, carbine, mid, or blowback matched to each barrel; adjustable gas block on suppressor-ready and ION uppers |
| Handguard | Free-float for accuracy, slim for handling | Streamline aluminum or carbon fiber, M-LOK on all 8 surfaces |
| BCG (complete uppers) | The heart of reliability | Faxon superfinished, nitrided, MPI-inspected carriers, matched to the caliber |
| Who builds it | Accountability when something needs fixing | Faxon makes the barrel, receiver, gas block, and MuzzLok® device and assembles the upper in Ohio, under a Lifetime Guarantee |
Barreled, Complete, Suppressor Ready, or Stripped?
| Configuration | What’s included | Who it’s for | MSRP |
|---|
| Barreled upper | Upper, barrel, gas block and tube, handguard, muzzle device. No BCG or charging handle | Builders with a BCG and charging handle picked out | $469–$809 |
| Barreled, suppressor ready | Same, with a MuzzLok® Plan B flash hider and adjustable gas block | Suppressor owners bringing their own BCG | $545–$848 |
| Complete upper | Everything above plus a Faxon BCG and charging handle | Pin it to a lower and shoot | $705–$1,180 |
| Complete, suppressor ready | Complete upper with a Plan B flash hider and adjustable gas block | The fastest way to a tuned, suppressed AR | $783–$1,219 |
| Stripped upper receiver | The receiver only, or with the forward assist and port cover kit | Full custom builds | $89–$125 |
Pick Your Caliber
| Caliber | Lengths | Series | Bolt | Magazines | Best for | MSRP |
|---|
| 5.56 | 10.5″, 11.5″, 14.5″, 16″ | Duty / ION | standard 5.56 / M16-pattern bolt | Standard AR-15 / STANAG 5.56 magazines | Do-it-all rifles, training, home defense, suppressed SBRs | $532–$1,219 |
| .223 Wylde | 16″ | Match | standard 5.56 / M16-pattern bolt | Standard AR-15 / STANAG 5.56 magazines | Accuracy with both 5.56 and .223 match ammunition | $532–$866 |
| 300 BLK | 7.5″, 10.5″ | Duty / Match | standard 5.56 / M16-pattern bolt | Standard AR-15 5.56 magazines | Short, suppressed, subsonic-ready uppers | $660–$866 |
| 6mm ARC | 12.5″, 16″ | Match | Type 2 6.5 Grendel / 6mm ARC bolt | 6.5 Grendel / 6mm ARC magazines | Long-range precision and hunting from an AR-15 | $599–$937 |
| 6.5 Grendel | 16″ | Match | Type 2 6.5 Grendel / 6mm ARC bolt | 6.5 Grendel / 6mm ARC magazines | Deer and hogs, steel past 600 yards | $599–$937 |
| 338 ARC | 9″, 12.5″ | Match | Type 2 bolt | Magazines made for 338 ARC | Heavy subsonic, suppressor-first hunting | $660–$999 |
| 350 Legend | 16″ | Duty | standard 5.56 / M16-pattern bolt | 350 Legend magazines | Straight-wall deer seasons and big-bore plinking | $532–$866 |
| 7.62x39 | 16″ | Duty | Type 1 7.62x39 bolt | AR-15 magazines made for 7.62x39 | Cheap-to-feed .30 cal plinking and hunting | $533–$870 |
| 9mm | 8.5″, 10.5″, 16″ | Duty | Gen 2 full-mass 9mm blowback BCG | Glock- or Colt-pattern 9mm magazines, matched to your 9mm lower | PCC competition, training, and home defense | $469–$783 |
Under-16″ uppers make a short-barreled rifle on a rifle lower and a pistol on a pistol lower; know and follow the laws where you live. For 300 BLK barrel length and twist, see Faxon’s 300 Blackout buyer’s guide.
Duty, Match, or ION?
| Series | Barrel | Built for | Complete uppers include |
|---|
| Duty Series | 4150 CMV, button rifled, QPQ nitride; Gunner, SOCOM, Light Taper (9mm), and Combat M4 (chrome lined) | Duty, defense, training, and hard-use rifles | Faxon superfinished BCG and a mil-spec charging handle |
| Match Series | 416-R stainless, 5R button rifled, QPQ nitride, NP3 extension | Precision: .223 Wylde, 6mm ARC, 6.5 Grendel, 300 BLK, 338 ARC | Faxon BCG and the Faxon Edition BREEK® Sledgehammer gas-blocking charging handle |

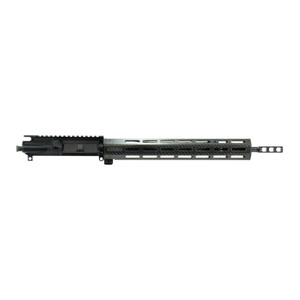

| ION Series | 16″ Duty Pencil, threaded or Integral® brake | The lightest Faxon 5.56 uppers | Gunner Lightweight BCG, adjustable gas block, carbon fiber handguard, BREEK® handle |
Suppressor Ready, Explained
Suppressor-ready Faxon uppers come with a MuzzLok® Plan B compatible flash hider and, on gas guns, Faxon’s patented adjustable gas block: 14 detented settings, with the adjustment outside the gas path so carbon can’t seize it. Add a Plan B to HUB adapter (titanium or stainless) and a HUB-mount can such as the HARMONIX® ION, HARMONIX® Sentry, or CORESYNC®, then tune the gas once. Faxon’s rule: if a build gets a lightweight carrier, it gets an adjustable gas block.
Built and Inspected in Ohio
Every barrel is borescoped after reaming, rifling, and chambering; bore and groove air gauged; chamber checked on a CMM program first and last of every run; muzzle threads and headspace gauged; and 100% wet magnetic particle inspected. Faxon runs a full CMM first-article inspection after any machine maintenance, tool change, or part change and at least every 30 days, checks material certs at receiving, and certifies stress relief and nitride by lot. Uppers are assembled, inspected, and packed in the same Greater Cincinnati facility.
What Reviewers Say About Faxon Uppers and Parts
PEW PEW TACTICAL
Faxon ION Video Review ›
Review of Faxon’s earlier ION Ultralight, the line this ION Series continues.
“Faxon’s Ions put rounds where you want them, no problem-o.”
RECOIL
Hog Hunting With 338 ARC ›
A 338 ARC hunting build on a Faxon upper, barrel, and gas block.
“their uppers and barrels are cut with very generous feed ramps to aid in reliability.”
SHOOTING ILLUSTRATED
First Look: Faxon ADJ Gas Block ›
Launch coverage of the adjustable gas block used on Faxon suppressor-ready uppers.
“Faxon’s new design stands out with a uniquely positioned gas-adjustment screw.”
PEW PEW TACTICAL
Faxon 9mm Bantam PCC Review ›
Review of Faxon’s earlier 9mm PCC upper, built on the same blowback barrel and BCG approach.
“We had zero issues with feeding or ejection during our testing sesh with the Bantam.”
PEW PEW TACTICAL
Faxon Ascent Review ›
Review of Faxon’s earlier Ascent rifles, built on Faxon barrels.
“Both guns ran great! They fed, fired, and ejected as intended with no issues.”
AR-15 Upper Receiver FAQs
What is the best AR-15 upper?
The best upper is the one built around a quality barrel, with a forged 7075-T6 receiver, a gas system matched to the barrel length, a free-float handguard, and, on a complete upper, a quality BCG, from a maker that stands behind it. Faxon makes the barrel, receiver, gas block, and muzzle device for its uppers, inspects every barrel (borescope, air gauge, headspace, 100% MPI), and backs them with a Lifetime Guarantee.
What’s the difference between a complete upper and a barreled upper?
A complete upper includes the bolt carrier group and charging handle and is ready to pin to a lower. A barreled upper has the receiver, barrel, gas system, handguard, and muzzle device installed but no BCG or charging handle.
What does “suppressor ready” mean on a Faxon upper?
It has a MuzzLok® Plan B compatible flash hider and, on gas guns, Faxon’s patented adjustable gas block, so a HUB-mount suppressor goes on with a Plan B to HUB adapter and the gas can be tuned to it.
Do I need an adjustable gas block to run a suppressor?
Not always, but it makes a suppressed AR run softer: a can adds back-pressure, and an adjustable block lets you reduce gas instead of beating up the carrier, extension, and buffer. With a lightweight carrier, Faxon always pairs an adjustable block.
Will any AR-15 upper fit any AR-15 lower?
Mil-spec AR-15 uppers fit mil-spec AR-15 lowers. Billet receivers from different makers can fit tighter or looser, and AR-10, AR-9, and dedicated-lower systems aren’t interchangeable. Faxon’s 9mm uppers need a lower set up for Glock- or Colt-pattern 9mm magazines.
Do I need to check headspace on a complete upper?
Every Faxon barrel is headspace gauged with GO/NO-GO gauges when the extension goes on. Checking headspace for the bolt you run is always good practice, and a must whenever you change bolts.
Does an upper need to ship to an FFL?
No. On an AR-15, the lower receiver is the serialized part; uppers ship directly to you. State and local laws on barrel length, threads, and muzzle devices still apply.
What’s the best 16-inch AR-15 upper, and why mid-length gas?
Mid-length gas on a 16″ barrel gives a softer, slower cycle than carbine gas and more dwell for reliability. Faxon’s 16″ Duty Gunner, SOCOM, and ION Pencil 5.56 uppers and the Match .223 Wylde, 6mm ARC, and 6.5 Grendel uppers all run mid-length gas.
Nitride or chrome-lined: which barrel is better?
Chrome lining still has its place, mainly sustained automatic fire. For most shooters, salt-bath QPQ nitride does what they need and more: it hardens the bore and exterior, resists corrosion, adds virtually nothing to the dimensions, and needs little to no break-in.
4150 CMV or 416-R stainless?
4150 CMV (Duty and ION) is the tough, mil-spec duty barrel steel. 416-R stainless (Match) is the precision barrel steel. Faxon nitrides both inside and out.
Forged or billet upper receiver?
A forged 7075-T6 upper is the proven standard: strong, consistent, and compatible. Faxon machines its uppers from 7075-T6 forgings and improves them: trued, honed bore, tighter lug tolerance, engraved T-marks.
What’s the best 300 Blackout upper for a suppressor?
A short barrel with a twist for heavy subsonics, an adjustable gas block, and a lightweight carrier. Faxon’s Match Series 7.5″ 300 BLK suppressor-ready uppers use its best-selling 1:5 barrel; the Duty Series 10.5″ 300 BLK uppers run a 1:8.
Can I use my 5.56 magazines and BCG in a 300 BLK upper?
Yes. 300 BLK uses the standard 5.56 bolt and magazines. Never chamber 5.56 or .223 in a 300 BLK barrel; mark your magazines.
What bolt and magazines do 6mm ARC and 6.5 Grendel uppers need?
A Type 2 6.5 Grendel / 6mm ARC bolt (Faxon complete uppers include one) and Grendel-pattern magazines. A 5.56 bolt won’t work.
What do I need to run a 338 ARC upper?
A Type 2 bolt with a .136 firing pin (included on complete uppers) and magazines made for 338 ARC. Faxon’s 338 ARC uppers use a receiver whose feed ramps are cut to match the barrel’s extended-ramp extension.
Why do 350 Legend uppers have feeding problems?
Usually the magazine or the receiver’s feed ramps. Faxon’s 350 Legend uppers are built on the Big Bore upper, with ramps and ejection port opened up for the case; use 350 Legend magazines.
What do I need for a 9mm AR upper?
A 9mm AR lower (or mag-well block) for Glock- or Colt-pattern magazines and the 9mm buffer system the lower’s maker recommends. Faxon’s 9mm uppers are blowback, with a full-mass Gen 2 BCG on complete uppers.
Is an upper under 16 inches legal?
On a rifle lower it makes a short-barreled rifle under federal law; on a pistol lower it makes an AR pistol. Laws vary by state and locality and can change; know and follow the laws where you live.
What’s the best AR-15 upper under $1,000?
Every Faxon complete upper except the ION Series is under $1,000: complete uppers run $705–$1,180, and suppressor-ready complete uppers $783–$1,219.
Where are Faxon uppers made?
Faxon makes the barrels, receivers, gas blocks, and MuzzLok® devices and assembles its uppers in Greater Cincinnati, Ohio, under the Faxon Lifetime Guarantee.
