Profiled Barrel Blanks

Faxon Profiled Barrel Blanks

10 416-R stainless barrel blanks for gunsmiths and custom builders, in .308, 6.5mm, 6mm, and 8.6mm bores, $261–$276. Faxon does the bore work: each blank is honed, 5R button rifled, stress relieved, lapped, 100% wet magnetic particle inspected, and profiled to an M24, Medium Sporter, or Bull contour. They ship uncoated, unchambered, and unthreaded, so your gunsmith can chamber, fit, and finish them for any action.

.308 BORE • 1:10 TWIST

27″ 7.62mm / .308 ›

M24, Medium Sporter, Bull. For .308 Winchester and other .30 caliber short-action cartridges. $276.

6.5MM BORE • 1:8 TWIST

27″ 6.5mm / .264 ›

M24, Medium Sporter, Bull. For 6.5 Creedmoor and other 6.5mm cartridges. $276.

6MM BORE • 1:7.5 TWIST

27″ 6mm / .243 ›

M24. For modern 6mm match cartridges such as 6mm Creedmoor and 6GT. $276.

8.6MM BORE • 1:3 TWIST

18″ 8.6mm / .338 ›

M24, Medium Sporter, Bull. For 8.6 Blackout only. $261.

NO LATHE NEEDED

Finished bolt action barrels ›

FX7 Prefit, RemAge®, and Savage® barrels, chambered and nitrided, with the thread protector in the box.

Blank or Finished Barrel?

A profiled blank has all of its bore work and its outside contour done, but none of the fitting. Your gunsmith cuts the chamber, the tenon and shoulder for your action, the finished length, the crown, and the muzzle threads. Choose a blank when you are building on an action Faxon doesn’t make a barrel for, want a custom chamber or length, or want to choose your own exterior finish.

Profiled blankFinished bolt action barrel
Bore workHoned, 5R button rifled, stress relieved, lappedHoned, 5R button rifled, stress relieved, lapped
Chamber and tenonCut by your gunsmith for any actionCut by Faxon for the FX7, Remington 700® (RemAge®), or Savage® 110
FinishUncoated, in the whiteSalt-bath QPQ nitride inside and out
IncludedBlank onlyThread protector; barrel nut on RemAge® and Savage®; taper adapter on 8.6 BLK
Who installsA gunsmith with a latheYou, with a vise, wrench, and headspace gauges
ShopProfiled blanksBolt action barrels

Choose Your Bore and Twist

BoreTwistLengthBore / grooveProfilesMSRPCommon chamberings
7.62mm / .3081:1027″.3015″ bore / .3095″ grooveM24, Medium Sporter, Bull$276.308 Winchester and other .30 caliber short-action cartridges
6.5mm / .2641:827″.2575″ bore / .2655″ grooveM24, Medium Sporter, Bull$2766.5 Creedmoor and other 6.5mm cartridges
6mm / .2431:7.527″.238″ bore / .244″ grooveM24$276Modern 6mm match cartridges such as 6mm Creedmoor and 6GT
8.6mm / .3381:318″.3315″ bore / .339″ grooveM24, Medium Sporter, Bull$2618.6 Blackout only

The 8.6mm blanks use the original 1:3 8.6 Blackout twist; because of that twist, Faxon advises against chambering them in any other cartridge. See the 8.6 Blackout guide.

Choose Your Profile

M24. A heavy tactical contour modeled on the classic military sniper profile: stiff, slow to heat, and steady from a bag or barricade.

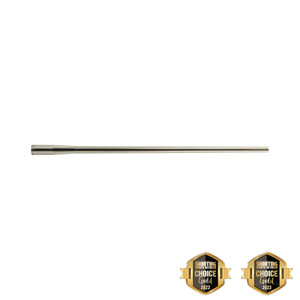

Medium Sporter. A classic sporter contour that balances weight and stiffness for rifles you carry and still want to shoot well from a bench.

Bull. A straight, full-diameter contour with no taper. It is the stiffest and heaviest option, and it leaves your gunsmith the most material to work with.

BlankAs-profiled diameters
27″ .308 M241.200″ for the first 3.005″, tapering to .887″ at the muzzle
27″ .308 Medium Sporter1.200″ for the first 2.505″, tapering to .692″ at the muzzle
27″ .308 Bull1.200″ straight, full length
27″ 6.5mm M241.200″ for the first 3.005″, tapering to .887″ at the muzzle
27″ 6.5mm Medium Sporter1.200″ for the first 2.505″, tapering to .692″ at the muzzle
27″ 6.5mm Bull1.200″ straight, full length
27″ 6mm M241.200″ for the first 3.005″, tapering to .887″ at the muzzle
18″ 8.6mm M241.200″ for the first 3.005″, tapering to 1.005″ at the muzzle
18″ 8.6mm Medium Sporter1.200″ for the first 2.505″, tapering to .765″ at the muzzle
18″ 8.6mm Bull1.200″ straight, full length

How Every Faxon Blank Is Made

  1. 416-R stainless bar gun-drilled and reamed
  2. Bore honed to 8 Ra before rifling
  3. 5R button rifled
  4. Bore air gauged
  5. Stress relieved
  6. Contour turned and cut to length
  7. Bore lapped
  8. 100% wet magnetic particle inspected, laser-engraved with the bore and twist, and final inspected

5R rifling uses five lands with sloped sides instead of sharp corners, which deforms the bullet less and fouls less. Blanks are left uncoated so the finish can be chosen after machining.

Profiled Barrel Blank FAQs

Are Faxon barrel blanks chambered or threaded?

No. They ship unchambered and unthreaded. Your gunsmith cuts the chamber, tenon, shoulder, crown, and muzzle threads.

Are the blanks coated?

No. Blanks ship uncoated, in the white. Faxon’s finished bolt action barrels are salt-bath QPQ nitrided inside and out.

Are the bores honed and lapped?

Yes. Every blank is honed before 5R button rifling, stress relieved, lapped, and 100% wet magnetic particle inspected.

What actions can a blank fit?

Any action your gunsmith can fit it to. The 1.200″ breech section leaves material for the tenon and shoulder on most actions.

Can I chamber the 8.6mm blank in another cartridge?

Faxon advises against it. The 1:3 twist is built for 8.6 Blackout, and the blank is intended for 8.6 BLK only.

Do blanks come with a thread protector or nut?

No. Blanks ship as the barrel only. Finished Faxon bolt action barrels include a thread protector, plus a nut or taper adapter where applicable.

Where are Faxon blanks made?

In Greater Cincinnati, Ohio, from 416-R stainless.

Remington 700® and Savage® are trademarks of their respective owners; Faxon is not affiliated with Remington or Savage. Barrel blanks must be finished and headspaced by a qualified gunsmith.
