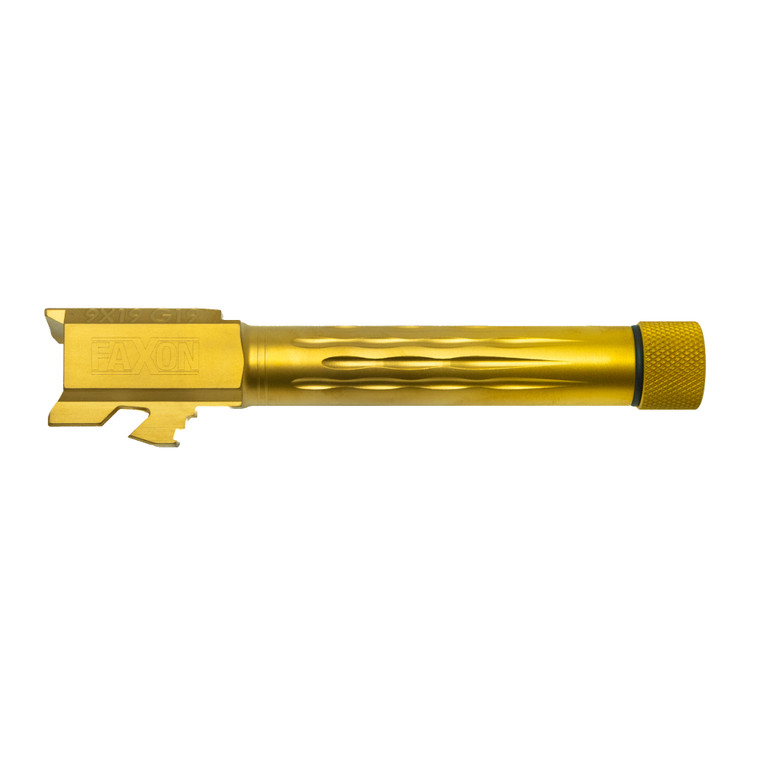

FAXON MATCH SERIES FLAME FLUTED® THREADED BARREL FOR G19 / G45 / G19X Gen 2–6 9MM IN TIN PVD
FaxonDescription
Pistol Barrels › For Glock® › For G19 | Works with: EXOS-513 for Gen 3 • EXOS-543 for Gen 4 • EXOS-553 for Gen 5
Fit and Compatibility
This barrel is a direct replacement for the factory barrel in Glock® 19 Gen 2–6, Glock® 45, and Glock® 19X slides. It is machined to tight tolerances for consistent lockup, and it drops into factory-spec slides with no gunsmithing. On some aftermarket slides, minor fitting may be needed.
Gen 6 compatibility: As of Job #16477 (engraved on the non-ejection side of the barrel hood), this barrel includes the Gen 6 relief cut and is compatible with the Glock® 19 Gen 2–6, the Glock® 45 (G45), and the Glock® 19X (G19X). Units made before Job #16477 are Gen 6 compatible, though increased wear in the area of the relief cut is possible.
The Glock® 45 and Glock® 19X are 9mm pistols with a G19-length slide and barrel on a G17-length frame, so they take a Glock® 19 barrel, not a .45 ACP barrel.
Aftermarket slides: there is a known compatibility issue with some Zaffiri Precision slides (ZPS.3v2 and ZPS.6 patterns) because of top-window size and placement.
Shipping: threaded barrels cannot be shipped to California.
How It’s Made
Every Faxon pistol barrel starts as a long 416-R stainless barrel blank that Faxon rifles in-house before it is ever cut into pistol barrels. That way the whole blank gets the same rifling, inspection, and stress relief, and every barrel cut from it starts from a qualified bore.
- Drill and ream: 416-R stainless bar gun-drilled and reamed as a long blank
- Button rifle: Button rifled 1:10, six grooves
- Air gauge: Bore and rifling air gauged
- Stress relieve: Stress relieved in-house after rifling, just like Faxon rifle barrels
- Cut and qualify: Blank cut to length and qualify-turned true to the bore
- Turn and mill: Hood, lugs, and Flame Fluted® profile turned and milled; 9mm SAAMI chamber and target crown cut; muzzle threaded 1/2x28
- Heat treat: 416-R heat treated to pistol-barrel hardness; 416-R isn’t hard enough for a pistol barrel as bar stock, while 4150 is
- Finish: Titanium nitride (TiN) PVD.
- Mark and inspect: Laser-marked and final inspected
Six-groove button rifling is land-and-groove rifling, not polygonal, so it runs jacketed and cast lead bullets.
How We Inspect It
Faxon pistol barrels are built to a written control plan, and each run is logged on inspection sheets. Here is what this barrel goes through before it ships.
| Burr check | Every barrel inspected for burrs under 10x magnification |
| Hood fit | Every hood run through a go/thru gauge |
| CMM | First and last barrel of every run checked on the CMM |
| First article | Full CMM first-article inspection after any machine maintenance, tool change, or part change, and at least every 30 days |
| Certifications | Material certs checked at receiving; stress relief certified by lot |
Flame Fluted® Profile
Faxon’s patented Flame Fluted® design cuts weight and adds surface area for faster cooling, with the distinctive Faxon look.
What’s in the Box
INCLUDED
G19 / G45 / G19X 9mm barrel
416-R stainless, Titanium nitride (TiN) PVD, 4.47″
INCLUDED
Thread protector
For the 1/2x28 muzzle threads.
NOT INCLUDED
Slide, recoil assembly, compensator
Pair a threaded barrel with a Faxon EXOS® compensator or a 1/2x28 suppressor.
Specifications
| Caliber | 9mm Luger (9x19), SAAMI chamber |
| Fits | Glock® 19 Gen 2–6, Glock® 45, and Glock® 19X slides |
| Length | 4.47″ |
| Series | Match Series |
| Profile | Flame Fluted® |
| Material | 416-R stainless, heat treated and stress relieved |
| Rifling | Button rifled, 1:10 twist, 6 grooves (land and groove) |
| Inspection | Bore and rifling air gauged |
| Finish | Titanium nitride (TiN) PVD |
| Muzzle | 1/2x28 threaded, target crown; thread protector included |
| Made in | Greater Cincinnati, Ohio, USA |
| FFL | Not required |
What Owners Say
“I picked this barrel up locally based on my experience with my direct orders. I only have good things to say about these barrels and I will be ordering more very soon.”
Patrick OBrien, verified buyer
“this barrel is awesome, lockup is great and fit and finish are top shelf”
AJ Metcalf, verified buyer
“After installing the match grade barrelon my G19 my weapon ran smoothly and looks great. Can’t wait to purchase more from this company in the near future.”
Ignacio, verified buyer
Average rating: 5.0 out of 5 stars from 9 reviews on FaxonFirearms.com.
What Reviewers and Dealer Customers Say
AMMOLAND
Faxon Firearms Glock 19 Threaded Barrel Review ›
Hands-on review of a Faxon Match Series barrel.
“Couple hundred rounds later (lots suppressed, and dirty), no failures to feed or extract.”
AMMOLAND
Flame Fluted Threaded Glock 17 & 19 Barrels Review ›
Hands-on review of a Faxon Match Series barrel.
“I am impressed in the quality of the Faxon barrels.”
“This barrel pairs great with their Faxon exo compensator and looks great as well!!”
rizz, OpticsPlanet review • Read it ›
“Functions well without failure to feed or eject. Barrel shoots accurate and has unique coating”
Darren, OpticsPlanet review • Read it ›
Quotes from third-party reviews and dealer listings; some cover the same barrel in another finish or threaded configuration.
Every Faxon Barrel for the G19 / G45 / G19X
| Barrel | Steel | Muzzle | Finish | MSRP |
|---|---|---|---|---|
| Match Series Flame Fluted® (this barrel) | 416-R stainless | Threaded | Gold TiN PVD | $130 |
| Duty Series | 4150 CMV | Non-threaded | Black nitride | $98 |
| Duty Series | 4150 CMV | Threaded | Black nitride | $99 |
| Match Series Flame Fluted® | 416-R stainless | Non-threaded | Black nitride | $120 |
| Match Series Flame Fluted® | 416-R stainless | Non-threaded | Chameleon PVD | $125 |
| Match Series Flame Fluted® | 416-R stainless | Non-threaded | Gold TiN PVD | $125 |
| Match Series Flame Fluted® | 416-R stainless | Threaded | Black nitride | $125 |
| Match Series Flame Fluted® | 416-R stainless | Threaded | Chameleon PVD | $130 |
| Match Series Spiral Fluted | 416-R stainless | Threaded | Nickel PVD | $133 |
Add a compensator: Faxon EXOS-513 for Gen 3 • Faxon EXOS-543 for Gen 4 • Faxon EXOS-553 for Gen 5. Faxon EXOS® comps thread onto the 1/2x28 muzzle; use the included thread locker on the barrel threads only, not on the set screws.
Match Series G19 / G45 / G19X Barrel FAQs
Is this barrel drop-in?
Yes. It is a direct replacement for the factory barrel in Glock® 19 Gen 2–6, Glock® 45, and Glock® 19X slides with no gunsmithing on factory-spec slides. Some aftermarket slides may need minor fitting.
How is it rifled?
Button rifled, 1:10 twist, with six grooves. Faxon rifles a long blank in-house, air gauges the bore and rifling, and stress relieves it before cutting it into pistol barrels.
Can I shoot cast lead bullets?
Yes. Six-groove button rifling is land-and-groove rifling, not polygonal, so it runs both jacketed and cast lead bullets.
What is the difference between Duty Series and Match Series pistol barrels?
Duty Series barrels are 4150 CMV in an OEM-style profile with salt-bath nitride inside and out. Match Series barrels are 416-R stainless, heat treated for pistol-barrel hardness, and come in fluted profiles and PVD color options.
What finish is it?
Titanium nitride (TiN) PVD.
Can I run a suppressor or compensator?
Yes. The muzzle is threaded 1/2x28, the common 9mm thread, and a thread protector is included. You will likely need suppressor-height sights to see over a suppressor.
Can it ship to California?
No. Threaded barrels cannot be shipped to California.
Will it fit a Ruger® RXM?
Faxon did not test its G19 barrels with the Ruger® RXM during development. Some customers report running them, but manufacturing tolerances vary, so fit is not guaranteed.
Where is it made?
In Greater Cincinnati, Ohio. Pistol barrels ship without an FFL.
GLOCK® is a federally registered trademark of GLOCK, Inc. and GLOCK Ges.m.b.H. Faxon Firearms is not affiliated with or endorsed by them; model names are for compatibility only. Flame Fluted® and EXOS® are trademarks of Faxon Firearms. Know and follow all federal, state, and local laws.
