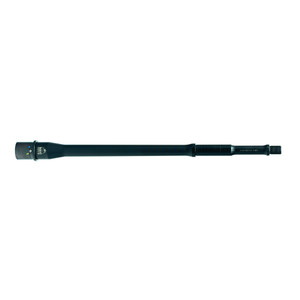

FAXON DUTY SERIES GUNNER PROFILE 16" MID-LENGTH 5.56 NATO AR15 BARREL

Rifle Barrels › Duty Series › 5.56 NATO / .223 › 16″ Gunner, Mid-Length  |  Works with: 5.56 BCG • .625″ gas block • mid-length gas tube • 1/2x28 muzzle devices • 5.56 suppressors

Why the Gunner Is Faxon’s Most Popular Barrel

A barrel’s stiffness comes from its diameter near the chamber; its weight comes from diameter everywhere. Government and SOCOM profiles carry mass the full length, which buys heat capacity for sustained fire at the cost of a nose-heavy rifle. Pencil profiles strip everything and give up some stiffness and heat soak. The Gunner splits the difference on purpose: a .980″ chamber journal and a Government taper from .675″ to .610″ behind the gas block, a .750″ step and .625″ gas journal at the block, and a .500″ section in front of it, ending in a threaded muzzle. The steel stays where it stiffens the barrel and controls heat, and comes off where it only adds swing weight.

The result is a 16″ barrel at 1.37 lb that balances like a light rifle and shoots like a heavier one. Owners run it in home-defense carbines, training rifles, and competition builds; reviewers have put it on both light-recoil and value lists for years. Pair it with a low-profile .625″ gas block under a free-float handguard and it is one of the lightest ways to build a 16″ AR that still has a real barrel in it.

What “Duty Series” Means

Duty Series is Faxon’s 4150 CMV line: the M4/M16 barrel alloy, salt-bath QPQ nitrided inside and out. 4150 carries about 0.50% carbon plus vanadium, which gives it more strength and wear resistance at temperature than 4140, and nitride adds a hard, corrosion-resistant surface to the bore and exterior without plating anything, and it adds virtually nothing to the surface: a few ten-thousandths of an inch, roughly a tenth the width of a human hair. It is the right combination for a barrel that will be shot hard, carried in the weather, and cleaned when there is time. Faxon’s stainless Match Series is the option when you want the precision-barrel formula; the Duty Series is the one to reach for when the rifle has a job.

What’s in the Box

How It’s Made

Every Duty Series barrel is made start to finish in Faxon’s Greater Cincinnati plant, on Faxon’s machines, to Faxon’s prints. This is the routing for this barrel.

1. Drill and pull-ream 4150 CMV bar is gun-drilled, then pull-reamed from the chamber end to a .2195″ bore held to ±.001″, with a 32 Ra maximum finish checked on a profilometer and a borescope pass for reamer marks.
2. Button rifle A carbide button is pulled through from the chamber end to form six grooves, right-hand, one turn in 8 inches, to a .2250″ groove diameter. Bore and groove are air-gauged.
3. Stress relieve and qualify The rifled blank is stress relieved before it becomes a finished barrel, then the OD is qualified true to the bore so every later cut references the same axis.
4. Turn the Gunner profile Muzzle end first: the .625″ gas journal is turned to .6240–.6247″ and checked with a micrometer on every barrel, held within .005″ of the bore, and the 1/2x28 muzzle is threaded and crowned. Then the breech end: .980″ chamber journal and the extension thread.
5. Chamber The 5.56 NATO chamber is cut and checked with a headspace gauge; chamber surfaces are held to a 20 Ra finish.
6. MPI and nitride The machined barrel is 100% wet magnetic-particle inspected for surface and near-surface flaws, then salt-bath QPQ nitrided inside the bore and out, hardening the surface while adding virtually nothing to it.
7. Gas port, extension, pin After nitride, the .081″ gas port is drilled and reamed through the .625″ journal, the M4 extension is torqued to 150 ft-lb and pinned, and the barrel is headspaced with a 5.56 go/no-go gauge.
8. Mark The Faxon shield and order number are laser-engraved on the chamber journal and “5.56 NATO 1-8T” ahead of the gas block.

What Reviewers and Owners Say

Voted Favorite Aftermarket Barrel by Shooting Sports Retailer every year since 2022 — the Gold Award, the top honor in the category. Faxon also took the Tactical Retailer Gold Award in the same category in 2025. Here is what independent testers and buyers have said about Faxon barrels and this one.

5.0 stars across 25 reviews on FaxonFirearms.com; the 5.56 Gunner family averages 4.6 stars across 68 reviews at OpticsPlanet, and the Duty Series 5.56 line holds 4.7 stars across 25 reviews at MidwayUSA.

Build It Out: Faxon Parts That Fit This Barrel

Everything below is made or specified to the same prints this barrel is, so the gas system, extension, and muzzle line up the first time. Pick one from each row and the upper is done.

Duty Series 16″ Gunner 5.56 FAQs

Is this a 5.56 NATO or .223 Remington chamber?

5.56 NATO, headspaced with a 5.56 go/no-go gauge after the extension is installed. A 5.56 chamber has the longer throat that lets it fire both 5.56 NATO and .223 Remington safely; the reverse is not true, so a .223-chambered barrel should not be fed 5.56.

Why mid-length gas on a 16″ barrel?

Because it puts the port about two inches farther from the chamber than carbine-length gas, so the system taps the bore at lower pressure. On a 16″ barrel that means a softer, more linear recoil impulse, less wear on the bolt and buffer, and better manners with a suppressor. Mid-length is the right gas system for a 16″ 5.56, and this barrel needs a mid-length gas tube.

What is the Gunner profile?

Faxon’s hybrid contour: a full-diameter chamber journal and a Government taper behind the gas block where the steel does the most work, then a .625″ gas journal and a .500″ section toward the muzzle where mass adds weight without adding stiffness. At 1.37 lb it is close to a Pencil barrel in weight and closer to a Government profile in rigidity. It is the profile Faxon is best known for.

What bullet weights does the 1:8 twist stabilize?

Everything from 55 gr FMJ through 69 and 77 gr match bullets. 1:8 is the most versatile twist for a general-purpose 5.56; 1:7 is only needed for the longest tracer and 80-plus grain projectiles, and 1:9 starts to run out of spin above 69 gr.

What gas block and gas tube does it take?

A .625″ gas block on the 1.9″ journal and a mid-length gas tube. Faxon makes a .625″ adjustable and a .625″ fixed low-profile block, and a 304 stainless mid-length gas tube. The gas port is reamed to .081″.

What does 4150 CMV mean?

Chrome-moly-vanadium steel with about 0.50% carbon, the alloy the M4 and M16 barrel specification calls for. The higher carbon and the vanadium give it more strength and wear resistance at temperature than 4140, which matters most on a barrel that will see fast strings and sustained fire.

Is the nitride inside the bore?

Yes. Salt-bath QPQ nitride is a diffusion treatment, not a plating, so it hardens the surface of the bore and the exterior while adding virtually nothing to it: the surface grows by a few ten-thousandths of an inch, .0002–.0004″, roughly a tenth the width of a human hair or about the diameter of a single red blood cell. It also gives the barrel its corrosion resistance and matte black finish.

Does it come with a gas block, gas tube, or muzzle device?

No. It ships with the black-oxide M4 extension installed, torqued, pinned, and headspaced. Gas block, gas tube, and muzzle device are sold separately; the muzzle is threaded 1/2x28.

Will it work with a suppressor?

Yes. The 1/2x28 muzzle takes any 5.56 direct-thread can or mount, and mid-length gas is the friendlier system for suppressed use. For a rifle that runs suppressed most of the time, pair it with the Faxon .625″ adjustable gas block so you can bring the gas down.

Where is it made, and what is the warranty?

Made in Greater Cincinnati, Ohio, from bar stock to finished barrel, and covered by the Faxon Lifetime Guarantee.

Dimensions are from the Faxon engineering print and inspection sheets for this SKU; weight is nominal. Gas block, gas tube, and muzzle device sold separately. Owner reviews are quoted as written from FaxonFirearms.com product reviews; press quotes link to their sources. Award: Shooting Sports Retailer Choice Awards, Favorite Aftermarket Barrel, Gold. Covered by the Faxon Lifetime Guarantee.
