FAXON SUPERFINISHED 5.56 M16 BOLT CARRIER GROUP - TIN PVD

Faxon
SKU:
FF556BCGCNITRIDE-TiN
|
UPC:
816341024632
Availability:
Usually ships within 2 business days when available.
$199.00
(4 reviews)
Current Stock:
Adding to cart… The item has been added

Description



AR-15 Bolt Carrier Group • 5.56 • M16 Full-Mass

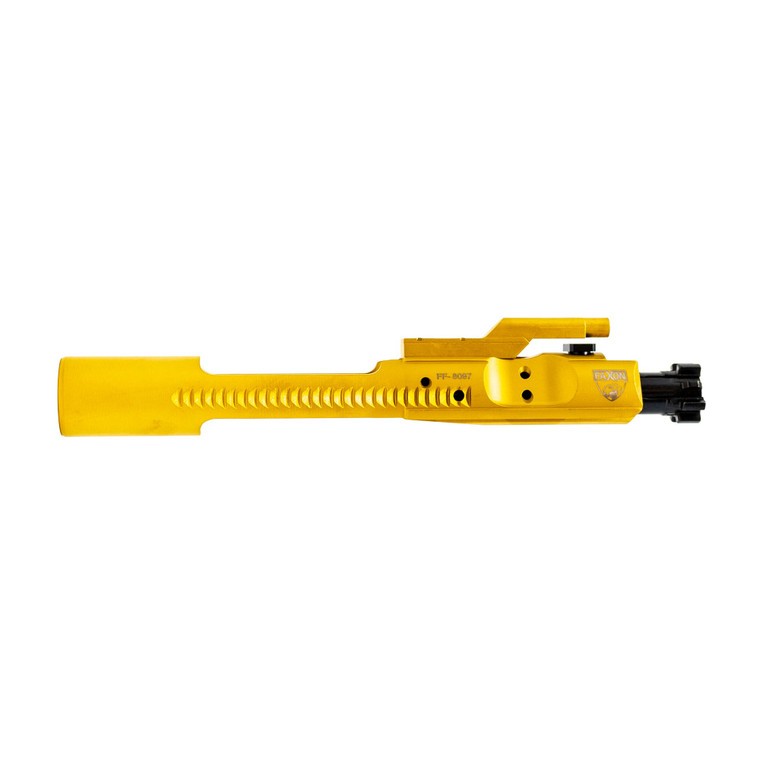

Faxon Superfinished 5.56 M16 Bolt Carrier Group – TiN PVD

.125 (5.56 / .223) Bolt  |  9310 Steel, HPT & MPI  |  Full-Auto Rated  |  FRT & Super Safety Compatible

A full-mass M16-pattern carrier group built to run hard: 8620 steel carrier, 9310 steel bolt, high-pressure tested and magnetic particle inspected and shot peened, S7 extractor, and a gas key held by grade 8 fasteners and fully staked. The finish is salt bath nitride on the bolt and carrier, with a TiN (titanium nitride) PVD coating on the carrier and gas key, and the carrier body gets Faxon's Superfinish to cut friction and fouling so it cleans up fast. It's full-auto rated and works with forced reset triggers and super safeties that don't require modifying the carrier.

M16 PATTERN, FULL-AUTO RATED

Full-length carrier bottom with the auto sear trip. Works with FRTs and super safeties that need no carrier modification.

9310 STEEL BOLT

High-pressure tested (HPT) and magnetic particle inspected (MPI), full mil-spec heat treat, shot peened, back of the lugs chamfered.

STAKED GAS KEY

Grade 8 fasteners, fully staked so the key stays tight for the life of the carrier.

TIN PVD

Gold TiN PVD carrier and gas key over a nitrided base. Slick and easy to wipe clean.

Rated 5.0/5 by verified buyers  •  SKU FF556BCGCNITRIDE-TiN  •  Made in the USA  •  Faxon Lifetime Guarantee

Built Past Mil-Spec Where It Counts

A bolt carrier group lives a hard life: every shot slams the bolt into battery, unlocks it under pressure, and drags the extractor across the case rim. Faxon starts with the mil-spec baseline and upgrades the parts that wear or break first.

9310 steel bolt

Tougher than standard Carpenter 158, MPI tested and shot peened, with the back of the lugs chamfered for smoother unlocking. Why 9310 matters.

S7 extractor

Heat treated and shot peened, with spring, insert and “Crane” O-ring installed for steady extraction tension.

Staked gas key

Grade 8 fasteners, fully staked so the gas key can’t loosen and leak gas.

Superfinished 8620 carrier

Mil-spec 8620 steel carrier body with a refined surface that reduces friction and fouling, so it cycles smoothly and wipes clean.

Made in the USA to Faxon designs and specifications. Faxon checks bolt headspace, laser-engraves each carrier with the Faxon Shield and a lot number, and gives every carrier group a final inspection in Fairfield, Ohio before it ships.

FRT, Super Safety & Full-Auto Compatibility

An M16-pattern carrier keeps the full-length bottom and the auto sear trip surface that a semi-auto cut removes. That extra mass and full-length rear is what full-auto fire control groups need, and it's what most forced reset triggers and super safeties are designed around. It also gives every Faxon carrier the same mass and timing whether you run it semi-auto or with an enhanced trigger.

Fire controlWorks with this BCG
Full-auto fire control groupsYes — M16 pattern, full-auto rated
Forced reset triggers (FRT)Yes — when the trigger needs no carrier modification
Super safetiesYes — when the safety needs no carrier modification
Binary and other enhanced triggersYes — follow the trigger maker’s buffer and spring guidance
Semi-auto mil-spec triggersYes

Specifications

Part numberFF556BCGCNITRIDE-TiN
Carrier8620 steel, full-mass M16 pattern, forward assist serrations, dust cover compatible
Bolt face.125 (5.56 / .223)
Bolt material9310 steel
Bolt heat treatFull mil-spec heat treatment, shot peened
Bolt testingHigh-pressure tested (HPT) and magnetic particle inspected (MPI)
LugsBack of lugs chamfered
ExtractorS7 tool steel, heat treated and shot peened; spring, insert and “Crane” O-ring installed
Gas keyGrade 8 fasteners, fully staked
FinishSalt bath nitride on the bolt and carrier, with a TiN (titanium nitride) PVD coating on the carrier and gas key
Carrier surfaceFaxon Superfinish
UPC816341024632
Made inUSA
WarrantyFaxon Lifetime Guarantee

Fitment

Calibers5.56 NATO, .223 Rem, .223 Wylde, .300 BLK, and other cartridges built on the 5.56 bolt face (350 Legend, 400 Legend)
PlatformAR-15 / M16 pattern upper receivers
Fire controlSemi, full-auto, FRT and super safety (no carrier modification)
Also works with300 Blackout AR-15 builds

Headspace is set by the bolt and the barrel extension. If your barrel was not headspaced to this bolt by Faxon, check it with go/no-go gauges before firing.

What Reviewers and Owners Say

Owners rate the TiN PVD version a perfect 5 stars, and the nitride carrier underneath is the same one behind Faxon’s best-selling BCG.

“I'm a gunsmith in Colorado. This is by far the best BCG I've ordered. Not only does it look great, it cleans up amazing and runs very smooth.”

Kevin, FaxonFirearms.com

“Currently own 3 of these BCGs paired with Faxon barrels. The fit and finish is second to none. Coating is super smooth and durable.”

Benjamin F., FaxonFirearms.com

“This BCG exudes quality and superior craftsmanship. Plus the gold hue makes it pop.”

OceanGuy808, FaxonFirearms.com

Average ratings: 5.0 out of 5 stars at FaxonFirearms.com; 4.9 out of 5 stars at FaxonFirearms.com, nitride M16 BCG.

FAQs

Is this BCG compatible with forced reset triggers (FRT)?

Yes. Every Faxon AR-15 bolt carrier group uses a full-auto rated M16-pattern carrier, and it works with forced reset triggers (FRTs) and super safeties as long as the trigger or safety you choose does not require physically modifying the carrier. Function depends on the whole system, so follow your trigger maker's buffer, spring and gas recommendations.

Will it work with a super safety?

Yes, on the same terms as FRTs: if the super safety does not call for cutting or otherwise modifying the carrier, a Faxon M16-pattern BCG drops in. The full-auto rated carrier profile is what most super safety and FRT makers ask for.

Is it full-auto rated?

Yes. It's an M16-pattern carrier with the full-length bottom and auto sear trip surface, rated for full-auto fire control groups where they're legally owned.

What is TiN PVD?

Titanium nitride applied by physical vapor deposition. It's a thin, very hard, gold-colored coating on the carrier and gas key that adds wear resistance and makes carbon easier to wipe off. The bolt and carrier are nitrided underneath.

What do HPT and MPI mean?

HPT (high-pressure testing) proof-loads the bolt with a high-pressure round to confirm it holds up beyond normal service pressure. MPI (magnetic particle inspection) then checks the steel for cracks and flaws you can't see. Every Faxon AR-15 BCG bolt gets both.

What is 9310 steel and why use it for the bolt?

9310 is a nickel-chrome-moly alloy steel known for toughness and fatigue resistance. Faxon uses it in place of standard Carpenter 158 so the bolt lugs hold up better under repeated high-pressure cycles. More on 9310 bolts.

What does Superfinished mean?

Superfinish is Faxon's refined surface on the carrier body. It reduces friction and carbon adhesion, so the carrier cycles smoothly and wipes clean faster.

Where is it made?

Made in the USA to Faxon designs and specifications, and headspace-checked, lot-engraved and inspected by Faxon Firearms in Fairfield, Ohio. Covered by the Faxon Lifetime Guarantee.

Can Faxon headspace this bolt to my barrel?

Faxon offers bolt-to-barrel headspace matching on FaxonFirearms.com orders that include a Faxon barrel. Read how the matching service works. If you are pairing the bolt with a barrel that was not headspaced by Faxon, check it with go/no-go gauges before firing.

Faxon Lifetime Guarantee. Covers manufacturing and material defects to the original purchaser. Excludes damage from misuse, neglect, improper installation, or modifications. Normal wear of springs, extractors, gas rings and finish is not a defect. Register your product at faxonfirearms.com/product-registration. Full terms: faxonfirearms.com/warranty-privacy-terms.

Always verify headspace with go/no-go gauges when pairing a bolt with a barrel that was not headspaced by Faxon. Full-auto, forced reset and other enhanced fire control groups are regulated differently by state and locality; know and follow the laws where you live. Third-party trigger and buffer makers set their own installation requirements; follow them.

For questions, contact customerservice@faxonfirearms.com.



Warranty

Faxon Lifetime Guarantee. Covers manufacturing and material defects to the original purchaser. Excludes damage from misuse, neglect, non-standard ammunition, or modifications. Register your product at faxonfirearms.com/product-registration to expedite service. For purchases through dealers or distributors, warranty repairs are handled directly by Faxon Firearms; refunds must be processed through the selling entity. Full policy: faxonfirearms.com/warranty-privacy-terms/

Customers Also Shopped These Items

Reviews

  • 5
    Bolt carrier group

    Posted by Chris Olivas on May 25th 2026

    Faxon makes great BCG’s. I have the same style in my 9mm AR carbine. They are machined to the highest standards.

  • 5
    Top Quality

    Posted by Benjamin Forman on Aug 31st 2023

    Currently own 3 of these BGCs paired with Faxon Barrels. The fit and finish is second to none. Coating is super smooth and durable. Will continue purchasing from Faxon.

  • 5
    Faxon 5.56 BCG, TiN PVD

    Posted by OceanGuy808 on Sep 28th 2022

    This BCG exudes quality and superior craftsmanship. Plus the gold hue makes it pop. This sucker is as smooth as butter

  • 5
    Best BCG I’ve ever had!

    Posted by Kevin on Feb 21st 2022

    If you are looking for an amazing BCG look no further. I’m a gunsmith in Colorado. This is by far the best BCG I’ve ordered. Not only does it look great it cleans up amazing and runs very smooth. I’ve matched this BCG with binaries and mil spec triggers and it runs. Lost count of how many rounds I ran through at the last range but it ejected and ran very well. Definitely gonna get more of them and recommend them highly!
