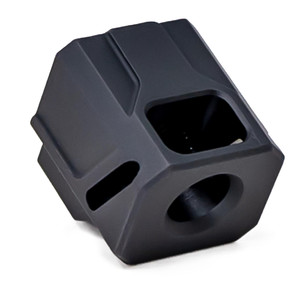

FAXON EXOS-533 PISTOL COMPENSATOR FOR GLOCK® 43X/48 - 9MM

What the EXOS-533 Does

A pistol compensator threads onto the muzzle and redirects propellant gas as it leaves the bore. Because the bore of a Glock® 48 sits above your hand, recoil rotates the muzzle upward — muzzle flip, and a light slimline carry pistol shows more of it than a full-size gun. The EXOS-533 uses that same gas to push the muzzle back down, so the sights settle faster and follow-up shots come sooner. It does not reduce the cartridge’s total recoil energy; it changes the direction the muzzle moves.

EXOS® does this with a single expansion chamber and three ports angled at 45°. Straight-up ports only act on gas after it has left the bore axis; the angled EXOS ports catch it earlier and vector it up and forward, so more of the available energy goes into counteracting flip. A single chamber keeps the comp short and light, which matters on a carry or duty pistol where a long, heavy comp changes how the slide cycles.

The 533 is not a scaled-down double-stack comp. It is cut around the 43X and 48’s own dimensions — their barrel diameter, their 0.87″ slide with its rounded top edges, and a guide rod that sits close to the bore — so the body is 0.865″ wide with matching rounded corners, the bore is sized to the 43X / 48 barrel, and the guide-rod relief clears the recoil assembly through the full slide stroke. The 43X and 48 share the same slide and muzzle geometry (the 48 just carries a longer barrel), so one comp fits both. The original 43 has a different slide profile and gets its own model, the EXOS-523.

What’s Included

Tested Performance

Faxon measured the EXOS-533 in a Ransom rest on a Glock® 48, firing 115 gr 9mm and recording the muzzle’s peak upward rotation in degrees with a bare threaded barrel and with the comp installed. Leading aftermarket compensators were run on the same host under the same conditions.

Averages of recorded shots on the Glock® 48 host. The 43X shares the 48’s slide and muzzle geometry; only barrel length differs. Results vary with ammunition, recoil spring, and grip.

Installation

EXOS-533 FAQs

Which pistols does the EXOS-533 fit?

The Glock® 43X and 48 with a 1/2x28 threaded barrel. It was engineered and function-tested on both. The original 43 uses the EXOS-523; the 17, 19, and 34 use the EXOS-513, 543, or 553 depending on generation.

How much does it reduce muzzle flip?

In Faxon’s Ransom-rest testing on a Glock® 48 with 115 gr 9mm, the EXOS-533 reduced peak muzzle rise by 33% versus a bare threaded barrel — from 31.1° to 20.9° — the lowest rise of every compensator in the test and the largest reduction of any EXOS® model.

Does one comp fit both the 43X and the 48?

Yes. The 43X and 48 share the same slide and the same barrel diameter and muzzle geometry; the 48 simply carries a longer barrel. The EXOS-533 fits both. The original 43 has a different slide profile, so it uses the EXOS-523 instead. Same porting on both models, different body.

Will it sit flush with my slide?

On a Faxon Glock® 43X or 48 threaded barrel, yes. On other 1/2x28 barrels, it sits flush when the muzzle protrudes 0.600″ or less past the slide; with more protrusion it still works but stands off from the slide.

Do I need a different recoil spring?

Usually not with standard-pressure or +P ammunition. A compensator bleeds off gas that would otherwise help drive the slide, so very light target loads can occasionally fail to lock the slide back on the last round. Step up to a standard 115–124 gr load first; a slightly lighter recoil spring is the next option for shooters who run light loads exclusively.

Will my holster still fit?

Installed, the EXOS-533 adds 1.125″ ahead of the slide and no width beyond it. Open-bottom holsters generally work as-is; closed-toe and appendix holsters need to be cut for a compensator, and most holster makers offer a comp option for the Glock® 43X and 48.

Does it work with a red dot or suppressor-height sights?

Yes. The single-chamber body keeps a low profile above the bore, so it does not block standard-height sights or a slide-mounted optic. The ports vent upward, so expect some visible gas in the sight picture on bright days, which is normal for any top-ported comp.

Where is the EXOS-533 made?

Machined from 6061 aluminum and black anodized in the USA by Faxon Firearms, a family-owned, federally licensed manufacturer in Greater Cincinnati, Ohio. Covered by the Faxon Lifetime Guarantee.

Faxon Lifetime Guarantee. Covers manufacturing and material defects to the original purchaser. Excludes damage from misuse, neglect, non-standard ammunition, or modifications. Finish wear from normal use is not a defect. Register your product at faxonfirearms.com/product-registration to expedite service. Full terms: faxonfirearms.com/warranty-privacy-terms.

Glock® is a registered trademark of Glock, Inc. SIG® and M&P® are registered trademarks of their respective owners. Faxon Firearms is not affiliated with or endorsed by any of these companies; trademarks are used for compatibility reference only. EXOS® is a registered trademark of Faxon Firearms. Muzzle-rise figures are from Faxon internal Ransom-rest testing with 115 gr 9mm ammunition; results vary with ammunition, recoil spring, and host condition. Compensators can change a pistol’s operating characteristics; always confirm function with your chosen ammunition before carrying.

For questions, contact customerservice@faxonfirearms.com.
