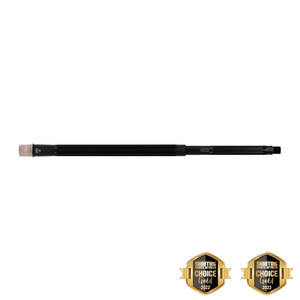

Faxon 20", Flame Fluted, 22 ARC, Rifle-Length, 416R, Nitride, 5R, Nickel Teflon Extension, 1/7 Twist

Faxon
SKU:
15B22A7R20LMQ-5R-NP3
|
UPC:
816341028050
Availability:
Usually ships within 2 business days.
$340.00
(1 review)
Current Stock:
Adding to cart… The item has been added

Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.

Faxon's MATCH SERIES of barrels takes our renowned performance and value up a notch.

Manufactured in-house from gun-barrel-quality bar-stock, the Match Series starts with 416-R in 5R rifling. 5R is a hybrid rifling, with lands opposite grooves and reduced sharp angles that reduces jacket deformation increasing velocity and easy cleaning. Chambered for 22 ARC, a high performance cartridge that the 5R rifling takes full advantage of. Each barrel is also fully and individually MPI tested for your safety. After rigorous testing, the barrels are Nitride treated inside and out, locking in the bore, improving barrel life, and keeping the elements at bay.

The extension is coated in Nickel Teflon which maintains incredible dry lubricity, corrosion resistance, and with the coating, tightens up fit between the extension and receiver - again improving upon accuracy. Combined, the Match Series of barrels are ready for when duty calls or the buzzer beeps with unrivaled performance value.

  • Barrel Material: 416-R Stainless
  • Barrel Type: Button Rifled
  • Barrel Caliber: 22 ARC
  • Barrel Twist: 1:7
  • Barrel Length: 20”
  • Barrel Profile:  Flame Fluted
  • Barrel Gas System: Rifle
  • Inside Finish: Nitride
  • Outside Finish: Nitride
  • Muzzle Thread: 1/2x28
  • Gas Block Diameter: .750"
  • Gas Block Journal Length: 1.1"
  • Barrel Extension: M4
  • Weight:  2.13  lbs
  • Magnetic Particle Inspected!
  • 11-degree Target Crown
  • Uses 6.5 Grendel bolt/BCG

*Faxon Firearms recommends the use of an adjustable gas block with this barrel

Reviews

  • 5
    20 inch 22 ARC barrel

    Posted by Vern on Feb 29th 2024

    I haven't got to shoot it yet but I believe it will work just as well as the Faxon barrels I have purchased in the past. I have absolutely no problems with any of them. Faxon is very good at getting your purchase to you quickly also, great product.
