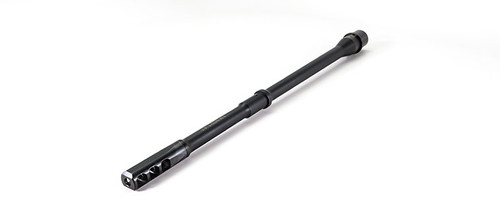

14.5" Pencil w/ Slim 3 Port Brake, 5.56, 4150, Nitride

14.5" Pencil w/ Slim 3 Port Brake, 5.56, 4150, Nitride

(4 reviews) Write a Review
Usually ships within 2 business days.

Our pencil barrels are the lightest in the industry. Don't take just our word for it, major companies like Robar, 2A Armament, and others choose Faxon pencils for their ideal balance of weight and performance.

We've taken them a step further, adding in our patent-pending permanently attached SLIM muzzle devices. Shooters can choose from a 3 port muzzle device or three-prong flash hider, both allowing the full assembly and disassembly of gas blocks and barrel nuts. Shooters are forever free to change their weapon's configuration without having to go to a gunsmith.

Faxon Firearms barrels are the pinnacle of value. Manufactured 100% in-house from cradle-to-grave, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.

Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.

SLIM Barrel Specifications (Pencil Profile, Permanently Attached):

• Barrel Material: 4150 GBQ Steel
• Barrel Type: Button Rifled
• Barrel Caliber: 5.56
• Barrel Twist: 1:8
• Barrel Length: 16.1”
• Barrel Profile: Pencil
• Barrel Gas System: Mid
• Inside Finish: QPQ Nitride
• Outside Finish: QPQ Nitride
• Muzzle Thread: 1/2-28 TPI (Threads Per Inch)
• Gas Block Diameter: .625"
• Gas Block Journal Length: 1.1"
• Barrel Extension: M4
• Weight: 19.52 Ounces
• Magnetic Particle Inspected!
• 11-degree Target Crown

*Please note muzzle devices are attached permanently. Any attempt to remove the device will result in the destruction of the barrel and void all warranties.

Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Videos Hide Videos Show Videos

4 Reviews Hide Reviews Show Reviews

  • Pencil Barrel

    Posted by Tony Baker on Jun 20th 2018

    Item exactly as advertised. This is the barrel you want if you are building an ultra-light AR-15.

  • Pencil SlimPerm

    Posted by Justin Garner on Jun 12th 2017

    Great barrel, accuracy is acceptable for a barrel of this profile. Light as a feather. The only issue is that the barrel is dimpled for a set screw gas block. I ordered a superlative adjustable set screw gas block with this barrel and expected the barrel to be dimpled for it. Other than that I would highly recommend this barrel for a lightweight build.

    Faxon Staff Note - We do not dimple any barrels - we do not believe it is needed and have a detailed article in our blog area on our reasoning. Best to not break the QPQ layer and increase corrosion!

  • High quality lightweight barrel

    Posted by stevesepich@gmail.com on Feb 21st 2017

    I'm in the firearm business and build a lot of rifles. I handle a lot of barrels and I feel these barrels are very high quality, beautiful pieces. I was able to successfully build a very lightweight rifle utilizing this barrel. With an optic and aluminum receivers my build came to 3.5 pounds. Amazing.

  • Great weight

    Posted by Unknown on Feb 14th 2017

    Love how lightweight this barrel is. Gun comes up very nice and is very maneuverable with all that weight savings up front. Great to see someone doing a factory pinned and welded 14.5" barrel. Only reason I give it 4 stars is the muzzle brake. Noticed mine wasn't timed correctly. Customer Service was great to work with though and sent me out a replacement quickly. Second one is still off just a tiny bit but nothing that I think would affect shooting. Much straighter than the first one I was sent. The other thing is that the weld isn't polished down and coated. Not sure if they did this to prove it's pinned and welded but I've seen other barrels where you can't even tell it's there. It's on the bottom and doesn't bother me too much though. All in all seems like a great barrel.
