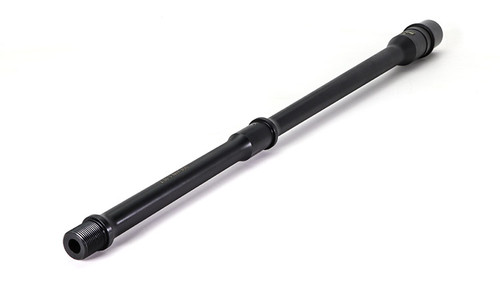

20", PENCIL, .308 WIN, Rifle-Length, 4150, Nitride

20", PENCIL, .308 WIN, Rifle-Length, 4150, Nitride

(2 reviews) Write a Review
$279.00
SKU:
10A810R20NPQ
UPC:
816341023314
Availability:
Usually ships within 2 business days.
Size Chart

Faxon's pencil barrels are renowned for their lightweight performance. Fully stress relieved, we carefully designed the barrel's taper to remove weight while maintaining performance. The result is the lightest barrel in the industry - and one we are fully confident to put our Faxon shield on.

Faxon's .308 barrels feature 1/10 twist rifling for full stabilization across all common .308 loadings. Our barrels are chambered to .308 Winchester SAAMI specification for maximum versatility. All our barrels are manufactured 100% in-house from cradle-to-grave, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.

Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.

Faxon manufactures all our barrels in Cincinnati, Ohio under our ISO:9001 and AS:9100  quality certifications.

  • Barrel Material: 4150 GBQ
  • Barrel Caliber: .308 WIN
  • Barrel Twist: 1:10
  • Barrel Length: 20”
  • Barrel Profile: PENCIL
  • Barrel Gas System: Rifle
  • Inside Finish: Salt Bath Nitride
  • Outside Finish: Salt Bath Nitride
  • Muzzle Thread: 5/8-24 TPI
  • Gas Block Diameter: .750"
  • Gas Port Diameter: .093"
  • Gas Block Journal Length: 1.1"
  • Barrel Extension: LR-308 (DPMS Compatible)
  • Weight: 2.07 lbs
  • Magnetic Particle Inspected!
  • 11-degree Target Crown

Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Videos Hide Videos Show Videos

2 Reviews Hide Reviews Show Reviews

  • Sub MOA Barrel, purchase with bolt and carrier recommended.
    5

    Posted by Diamondback on Dec 17th 2017

    I custom build to achieve ultralight weights in AR 308 rifles. With my hand loads in 165gr Hornady Interbonds it grouped 1/2 MOA at 100yds with Varget, Winchester brass, Winchester primers. 2.800" OAL and lee factory crimp. This is a quality barrel. The chamber was a little large, so use a rcbs full length small base die for resizing brass. If you are custom building, this is a very good barrel to use. If reloading, keep your pressure in the lower 45,000 PSI to 52,000 PSI range for an AR 308 and DO NOT USE max loads off reloading charts. Those are for bolt action rifles that can handle more pressure. AR 308's use the lower charge zone on reloading charts with H4895, IMR 4895, IMR 4064, and Varget powders doing very well in this barrel.

  • Very Satisfied
    5

    Posted by Kyle H on Jun 14th 2017

    Was trying to put together a light weight 308 hunter. Ended up at 7.9 lbs empty. Faxon 20" Pencil barrel, Faxon complete bolt carrier group, (factory head spaced), Gamma VG6 Break, SLR adjustable gas block, SLR Ultralight Handguard and CMC 3.5 trigger on DPMS pattern (JD Machine Tech) upper and lower. I could not be any happier. I was a little skeptic buying the pencil barrel, but that thing performed, multiple 5 shot 1/2 - 3/4" groups at 100 yards using Hornady 168 BTHP Match. My 21 year old daughter who never shoots, pulled off a 1.5" 10 shot group at 100 yards. I could not be happier with this barrel and I cannot wait till Faxon comes out with their match grade barrel. A+
